Some south bridges, CPUs or memory controllers contain embedded sensors.
Do you want to scan for them? This is totally safe. (YES/no):
Module cpuid loaded successfully.
Silicon Integrated Systems SIS5
详情回复
壹xx 发表于 2026-7-19 02:41
输入sudo sensors-detect之后一路回车
从输出结果中 Super I/O 和 Some legacy ISA chips 这两段内容中找
...
这是所有的,我先安装IT87 ,然后重启试试
Some south bridges, CPUs or memory controllers contain embedded sensors.
Do you want to scan for them? This is totally safe. (YES/no):
Module cpuid loaded successfully.
Silicon Integrated Systems SIS5595... No
VIA VT82C686 Integrated Sensors... No
VIA VT8231 Integrated Sensors... No
AMD K8 thermal sensors... No
AMD Family 10h thermal sensors... No
AMD Family 11h thermal sensors... No
AMD Family 12h and 14h thermal sensors... No
AMD Family 15h thermal sensors... No
AMD Family 16h thermal sensors... No
AMD Family 17h thermal sensors... No
AMD Family 15h power sensors... No
AMD Family 16h power sensors... No
Hygon Family 18h thermal sensors... No
Intel digital thermal sensor... Success!
(driver `coretemp')
Intel AMB FB-DIMM thermal sensor... No
Intel 5500/5520/X58 thermal sensor... No
VIA C7 thermal sensor... No
VIA Nano thermal sensor... No
Some Super I/O chips contain embedded sensors. We have to write to
standard I/O ports to probe them. This is usually safe.
Do you want to scan for Super I/O sensors? (YES/no):
Probing for Super-I/O at 0x2e/0x2f
Trying family `National Semiconductor/ITE'... No
Trying family `SMSC'... No
Trying family `VIA/Winbond/Nuvoton/Fintek'... No
Trying family `ITE'... Yes
Found `ITE IT8728F Super IO Sensors' Success!
(address 0xa20, driver `it87')
Probing for Super-I/O at 0x4e/0x4f
Trying family `National Semiconductor/ITE'... No
Trying family `SMSC'... No
Trying family `VIA/Winbond/Nuvoton/Fintek'... No
Trying family `ITE'... No
Some systems (mainly servers) implement IPMI, a set of common interfaces
through which system health data may be retrieved, amongst other things.
We first try to get the information from SMBIOS. If we don't find it
there, we have to read from arbitrary I/O ports to probe for such
interfaces. This is normally safe. Do you want to scan for IPMI
interfaces? (YES/no):
Probing for `IPMI BMC KCS' at 0xca0... No
Probing for `IPMI BMC SMIC' at 0xca8... No
Some hardware monitoring chips are accessible through the ISA I/O ports.
We have to write to arbitrary I/O ports to probe them. This is usually
safe though. Yes, you do have ISA I/O ports even if you do not have any
ISA slots! Do you want to scan the ISA I/O ports? (yes/NO):
Lastly, we can probe the I2C/SMBus adapters for connected hardware
monitoring devices. This is the most risky part, and while it works
reasonably well on most systems, it has been reported to cause trouble
on some systems.
Do you want to probe the I2C/SMBus adapters now? (YES/no):
Using driver `i2c-i801' for device 0000:00:1f.3: Intel Panther Point (PCH)
Module i2c-dev loaded successfully.
Next adapter: SMBus I801 adapter at 0000:00:1f.3 (i2c-0)
Do you want to scan it? (yes/NO/selectively):
Next adapter: i915 gmbus ssc (i2c-1)
Do you want to scan it? (yes/NO/selectively):
Next adapter: i915 gmbus vga (i2c-2)
Do you want to scan it? (yes/NO/selectively):
Next adapter: i915 gmbus panel (i2c-3)
Do you want to scan it? (yes/NO/selectively):
Next adapter: i915 gmbus dpc (i2c-4)
Do you want to scan it? (yes/NO/selectively):
Next adapter: i915 gmbus dpb (i2c-5)
Do you want to scan it? (yes/NO/selectively):
Next adapter: i915 gmbus dpd (i2c-6)
Do you want to scan it? (yes/NO/selectively):
Next adapter: AUX B/DP B (i2c-7)
Do you want to scan it? (yes/NO/selectively):
Next adapter: AUX C/DP C (i2c-8)
Do you want to scan it? (yes/NO/selectively):
Next adapter: AUX D/DP D (i2c-9)
Do you want to scan it? (yes/NO/selectively):
Now follows a summary of the probes I have just done.
Just press ENTER to continue:
Driver `it87':
* ISA bus, address 0xa20
Chip `ITE IT8728F Super IO Sensors' (confidence: 9)
Driver `coretemp':
* Chip `Intel digital thermal sensor' (confidence: 9)
To load everything that is needed, add this to /etc/modules:
#----cut here----
# Chip drivers
coretemp
it87
#----cut here----
If you have some drivers built into your kernel, the list above will
contain too many modules. Skip the appropriate ones!
Do you want to add these lines automatically to /etc/modules? (yes/NO)
2026-6-26 04:20:08

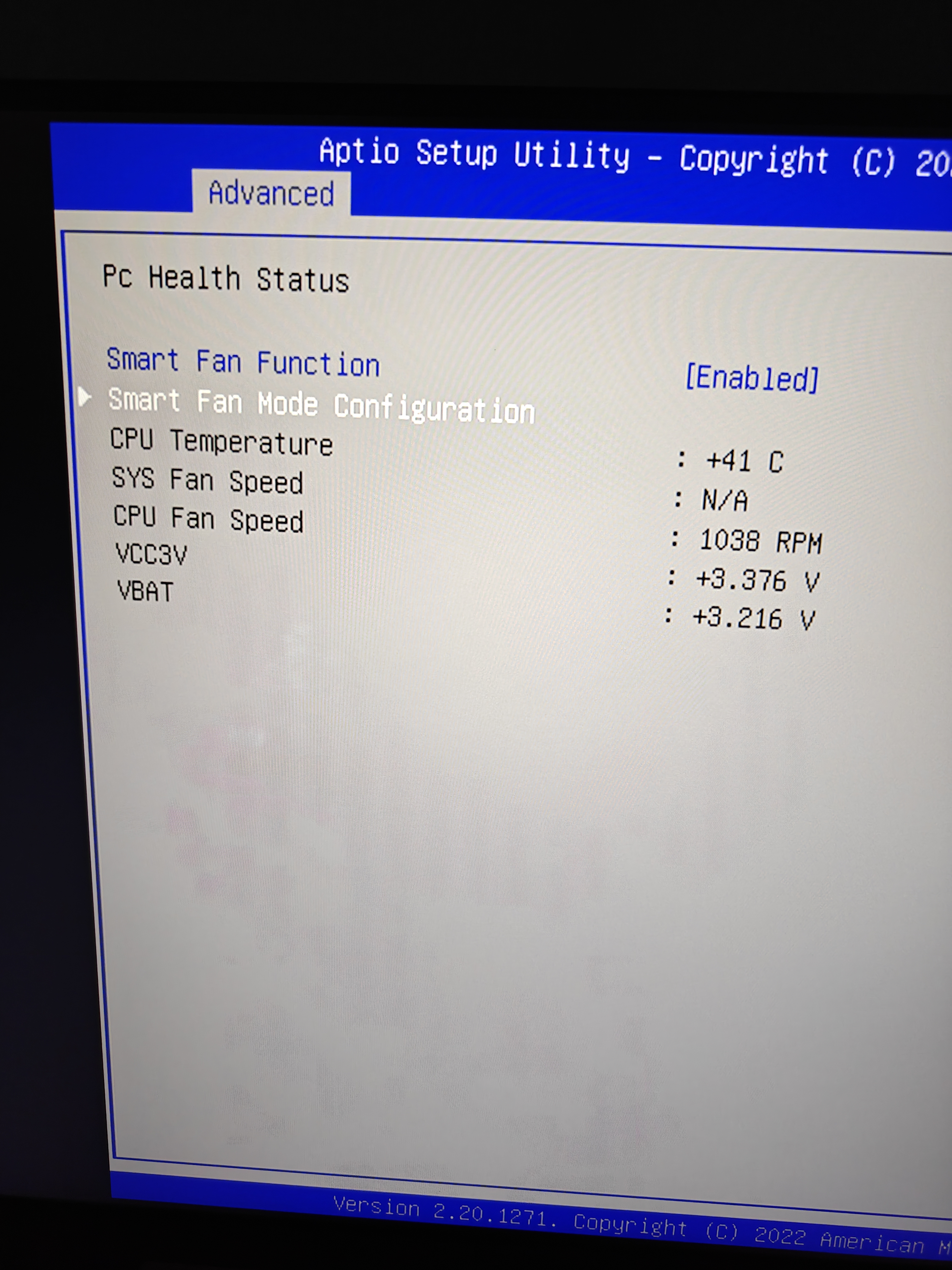

我的双敏H311M PRO主板不支持调速
2026-6-30 20:33:32 楼主
