硬盘健康状态无法检测

tianxiadiyi

设备环境：（虚拟机，硬盘直通挂载、局域网、系统版本号：0.9.18）

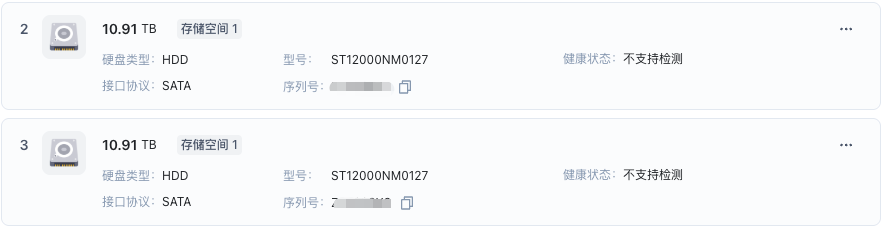

BUG现象：（健康状态不支持检测，如图所示）

现在可以通过sudo root 权限后通过smartctl 命令检测到硬盘信息。但是系统页面内检测不到，如图所示。这个情况是在更新系统后发现的。今年年初 1 月份初装的时候还是能看到健康状态的，具体是在更新哪个版本之后不支持的记不清了。

飞牛技术同学

是内置还是外接的硬盘？

一个橙_go6g4

[quote][size=2][url=forum.php?mod=redirect&goto=findpost&pid=156542&ptid=33403][color=#999999]飞牛技术同学 发表于 2025-8-7 18:34[/color][/url][/size] 是内置还是外接的硬盘？[/quote]

我的硬盘是 奥睿科 9558RU3阵列柜（JMS567+JMS575），也不能在飞牛里面看smart。飞牛系统有钩子或者接口把自己查到的smart同步到飞牛的存储管理里面么？

#!/bin/bash

# 智能USB硬盘健康检查脚本
# 自动检测可用设备并检查健康状态

# 颜色定义
RED='\033[0;31m'
GREEN='\033[0;32m'
YELLOW='\033[1;33m'
BLUE='\033[0;34m'
NC='\033[0m'

echo -e "${BLUE}智能USB硬盘健康检查工具${NC}"
echo "================================"

# 自动检测可用设备
echo "正在检测可用设备..."
available_devices=()

for device in /dev/sd[a-z]; do
    if [ -b "$device" ]; then
        echo -n "检测 $device: "
        # 尝试获取设备信息，即使返回码不为0
        smart_output=$(sudo smartctl -i "$device" -d sat 2>&1)
        if echo "$smart_output" | grep -q "Device Model:"; then
            model=$(echo "$smart_output" | grep "Device Model:" | cut -d: -f2 | xargs)
            if [ -n "$model" ]; then
                echo -e "${GREEN}可用${NC} (型号: $model)"
                available_devices+=("$device")
            else
                echo -e "${YELLOW}无法获取型号${NC}"
            fi
        else
            echo -e "${RED}无法访问${NC}"
        fi
    fi
done

echo ""
if [ ${#available_devices[@]} -eq 0 ]; then
    echo -e "${RED}未找到可用的硬盘设备${NC}"
    echo ""
    echo "可能的原因："
    echo "1. USB硬盘未连接"
    echo "2. 设备名称不是 /dev/sd*"
    echo "3. 需要不同的smartctl参数"
    echo "4. 权限问题"
    echo ""
    echo "请运行以下命令进行详细诊断："
    echo "sudo ./device_check.sh"
    exit 1
fi

echo -e "${GREEN}找到 ${#available_devices[@]} 个可用设备${NC}"
echo ""

# 检查每个可用设备
for device in "${available_devices[@]}"; do
    echo -e "\n${BLUE}检查设备: $device${NC}"
    echo "----------------------------------------"

    # 获取SMART状态
    echo "获取SMART数据..."
    smart_output=$(sudo smartctl -a "$device" -d sat 2>&1)

    if [ -z "$smart_output" ] || ! echo "$smart_output" | grep -q "Device Model:"; then
        echo -e "${RED}无法获取 $device 的SMART数据${NC}"
        continue
    fi

    # 提取基本信息
    model=$(echo "$smart_output" | grep "Device Model:" | cut -d: -f2 | xargs)
    serial=$(echo "$smart_output" | grep "Serial Number:" | cut -d: -f2 | xargs)
    smart_status=$(echo "$smart_output" | grep "SMART overall-health self-assessment test result:" | cut -d: -f2 | xargs)

    echo "型号: $model"
    echo "序列号: $serial"
    echo -n "SMART状态: "

    if [ "$smart_status" = "PASSED" ]; then
        echo -e "${GREEN}PASSED${NC}"
    else
        echo -e "${RED}FAILED${NC}"
    fi

    # 提取关键指标
    echo "关键指标:"

    # 重分配扇区
    realloc=$(echo "$smart_output" | grep "Reallocated_Sector_Ct" | awk '{print $10}')
    if [ "$realloc" = "0" ] || [ -z "$realloc" ]; then
        echo -e "  重分配扇区: ${GREEN}0${NC}"
    else
        echo -e "  重分配扇区: ${RED}$realloc${NC}"
    fi

    # 待处理扇区
    pending=$(echo "$smart_output" | grep "Current_Pending_Sector" | awk '{print $10}')
    if [ "$pending" = "0" ] || [ -z "$pending" ]; then
        echo -e "  待处理扇区: ${GREEN}0${NC}"
    else
        echo -e "  待处理扇区: ${RED}$pending${NC}"
    fi

    # 不可纠正扇区
    uncorrectable=$(echo "$smart_output" | grep "Offline_Uncorrectable" | awk '{print $10}')
    if [ "$uncorrectable" = "0" ] || [ -z "$uncorrectable" ]; then
        echo -e "  不可纠正扇区: ${GREEN}0${NC}"
    else
        echo -e "  不可纠正扇区: ${RED}$uncorrectable${NC}"
    fi

    # 温度
    temp_line=$(echo "$smart_output" | grep "Temperature_Celsius")
    if [ -n "$temp_line" ]; then
        temp_raw=$(echo "$temp_line" | awk '{print $10}' | sed 's/(.*//')
        if [[ "$temp_raw" =~ ^[0-9]+$ ]] && [ "$temp_raw" -ge 0 ] 2>/dev/null; then
            if [ "$temp_raw" -le 45 ]; then
                echo -e "  温度: ${GREEN}${temp_raw}°C${NC}"
            elif [ "$temp_raw" -le 50 ]; then
                echo -e "  温度: ${YELLOW}${temp_raw}°C${NC}"
            else
                echo -e "  温度: ${RED}${temp_raw}°C${NC}"
            fi
        else
            echo -e "  温度: ${YELLOW}无法解析${NC}"
        fi
    else
        echo -e "  温度: ${YELLOW}未找到${NC}"
    fi

    # 使用时间
    power_line=$(echo "$smart_output" | grep "Power_On_Hours")
    if [ -n "$power_line" ]; then
        power_hours_raw=$(echo "$power_line" | awk '{print $10}')
        if [[ "$power_hours_raw" =~ ^[0-9]+$ ]] && [ "$power_hours_raw" -gt 0 ] 2>/dev/null; then
            years=$((power_hours_raw / 8760))
            if [ "$years" -le 3 ]; then
                echo -e "  使用时间: ${GREEN}${years}年${NC}"
            elif [ "$years" -le 5 ]; then
                echo -e "  使用时间: ${YELLOW}${years}年${NC}"
            else
                echo -e "  使用时间: ${RED}${years}年${NC}"
            fi
        else
            echo -e "  使用时间: ${YELLOW}无法获取${NC}"
        fi
    else
        echo -e "  使用时间: ${YELLOW}未找到${NC}"
    fi

    # UDMA CRC错误
    crc_line=$(echo "$smart_output" | grep "UDMA_CRC_Error_Count")
    if [ -n "$crc_line" ]; then
        crc_errors_raw=$(echo "$crc_line" | awk '{print $10}')
        if [[ "$crc_errors_raw" =~ ^[0-9]+$ ]] && [ "$crc_errors_raw" -ge 0 ] 2>/dev/null; then
            if [ "$crc_errors_raw" -le 10 ]; then
                echo -e "  UDMA CRC错误: ${GREEN}$crc_errors_raw${NC}"
            else
                echo -e "  UDMA CRC错误: ${YELLOW}$crc_errors_raw${NC}"
            fi
        else
            echo -e "  UDMA CRC错误: ${YELLOW}无法获取${NC}"
        fi
    else
        echo -e "  UDMA CRC错误: ${YELLOW}未找到${NC}"
    fi

    # 健康评估
    echo -n "健康评估: "
    if [ "$smart_status" = "PASSED" ] && [ "$realloc" = "0" ] && [ "$pending" = "0" ] && [ "$uncorrectable" = "0" ]; then
        echo -e "${GREEN}健康${NC}"
    elif [ "$smart_status" = "PASSED" ]; then
        echo -e "${YELLOW}需要注意${NC}"
    else
        echo -e "${RED}有问题${NC}"
    fi

    echo "----------------------------------------"
done

echo -e "\n${BLUE}检查完成${NC}"
echo "提示:"
echo "  - 绿色: 正常"
echo "  - **: 需要注意"
echo "  - 红色: 有问题"
echo ""
echo "建议定期运行此脚本监控硬盘健康状况"
