设备环境：某RK3566 T 物理机、局域网、系统294

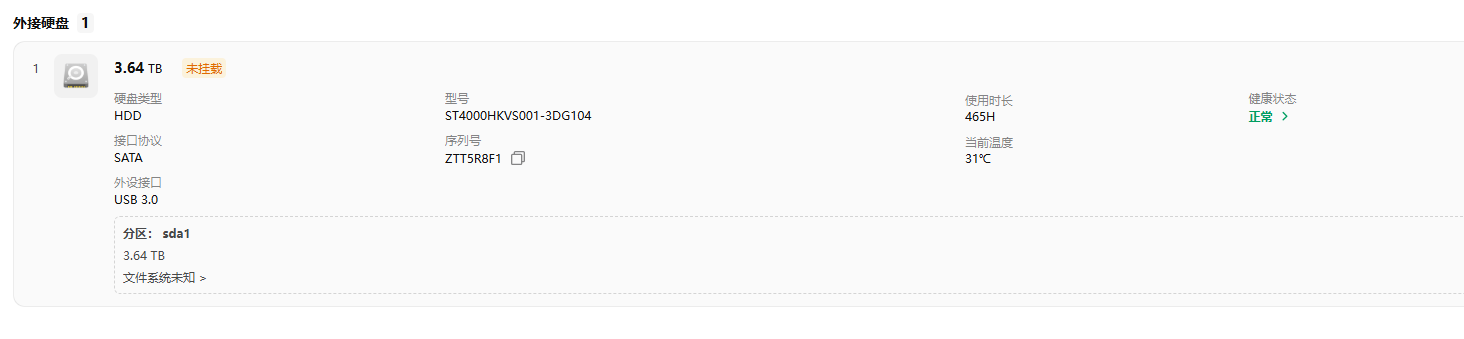

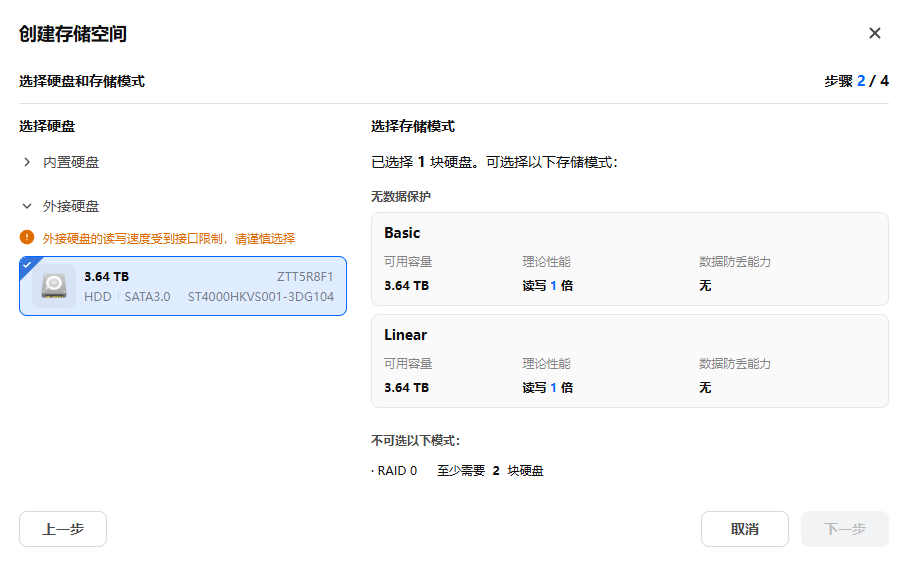

BUG现象：某RK3566 T 挂载机械硬盘，硬盘独立电源，sata转USB接入USB拓展坞。已经正常创建btrfs空间，并通过相册上传了大量照片，使用正常。后陆续机械硬盘会出现硬盘移除情况未挂载，重启后有时候会正常，使用过程中有时候会突然出现未挂载。 后有一个固态硬盘插入USB拓展坞，创建btrfs空间后正常使用，重启后机械硬盘无法挂载，反复重启多次也是显示3.6T的机械硬盘未挂载。去掉固态硬盘启动机械硬盘还是未挂载，固态硬盘就无论怎么样启动都是正常挂载的。此时去创建存储空间能对机械硬盘创建存储空间，选到机械硬盘（但是需要格式化肯定是不能去做）。
出现频率：必现
联系方式：QQ445371992 jzdzhiyun@qq.com
日志文件：『来自123云盘用户的分享』链接：https://www.123865.com/s/HLTNvd-V4w23
飞牛 3.6T机械硬盘btrfs 文件系统，显示未挂载，如何手动挂载？
root@jadenHome:/# lsblk
NAME MAJ:MIN RM SIZE RO TYPE MOUNTPOINTS
sda 8:0 1 117.2G 0 disk
**─sda1 8:1 1 117.2G 0 part
**─md127 9:127 0 117.1G 0 raid1
**─trim_421bba93_d67b_48d2_8511_f1944cb6b659-0 253:0 0 117.1G 0 lvm /vol1
sdc 8:32 0 931.5G 0 disk
**─sdc1 8:33 0 931.5G 0 part
**─md125 9:125 0 931.4G 0 raid1
**─trim_5f565982_8b53_4aeb_a650_f303878e2114-0 253:2 0 931.4G 0 lvm /vol2
sdd 8:48 0 3.6T 0 disk
**─sdd1 8:49 0 3.6T 0 part
mmcblk0 179:0 0 7.3G 0 disk
**─mmcblk0p1 179:1 0 255M 0 part /boot
**─mmcblk0p2 179:2 0 6.8G 0 part /
mmcblk0boot0 179:32 0 4M 1 disk
mmcblk0boot1 179:64 0 4M 1 disk
zram0 252:0 0 0B 0 disk
root@jadenHome:/# fdisk -l
Disk /dev/mmcblk0: 7.28 GiB, 7818182656 bytes, 15269888 sectors
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disklabel type: gpt
Disk identifier: BBF08B30-6960-4EF9-8118-4E80899E65D0
Device Start End Sectors Size Type
/dev/mmcblk0p1 368640 890879 522240 255M Linux filesystem
/dev/mmcblk0p2 923648 15106047 14182400 6.8G Linux filesystem
Disk /dev/mmcblk0boot0: 4 MiB, 4194304 bytes, 8192 sectors
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disk /dev/mmcblk0boot1: 4 MiB, 4194304 bytes, 8192 sectors
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disk /dev/sda: 117.19 GiB, 125829120000 bytes, 245760000 sectors
Disk model: F372S
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disklabel type: gpt
Disk identifier: 6EEED6E9-1B40-4C16-8204-8D332E7F2779
Device Start End Sectors Size Type
/dev/sda1 2048 245757951 245755904 117.2G Linux RAID
Disk /dev/md127: 117.12 GiB, 125758865408 bytes, 245622784 sectors
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disk /dev/mapper/trim_421bba93_d67b_48d2_8511_f1944cb6b659-0: 117.12 GiB, 125757816832 bytes, 245620736 sectors
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disk /dev/sdc: 931.51 GiB, 1000204885504 bytes, 1953525167 sectors
Disk model: Expansion
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 4096 bytes
I/O size (minimum/optimal): 4096 bytes / 4096 bytes
Disklabel type: gpt
Disk identifier: 5BD5C11A-AD89-4EA6-9A97-8E6E2A3FA13A
Device Start End Sectors Size Type
/dev/sdc1 2048 1953523711 1953521664 931.5G Linux RAID
Disk /dev/md125: 931.39 GiB, 1000067825664 bytes, 1953257472 sectors
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 4096 bytes
I/O size (minimum/optimal): 4096 bytes / 4096 bytes
Disk /dev/mapper/trim_5f565982_8b53_4aeb_a650_f303878e2114-0: 931.38 GiB, 1000064679936 bytes, 1953251328 sectors
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 4096 bytes
I/O size (minimum/optimal): 4096 bytes / 4096 bytes
Disk /dev/sdd: 3.64 TiB, 4000787030016 bytes, 7814037168 sectors
Disk model: VS001-3DG104
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 4096 bytes
I/O size (minimum/optimal): 4096 bytes / 4096 bytes
Disklabel type: gpt
Disk identifier: 93526ED5-935B-4218-BED9-48619E3A3C6B
Device Start End Sectors Size Type
/dev/sdd1 2048 7814035455 7814033408 3.6T Linux RAID
root@jadenHome:/# sudo btrfs filesystem show
Label: 'rootfs' uuid: 0409a5c9-bba3-45c7-b08c-05bd009882ed
Total devices 1 FS bytes used 2.23GiB
devid 1 size 6.76GiB used 3.95GiB path /dev/mmcblk0p2
Label: none uuid: de175aeb-255e-4830-a241-e51c4b2fbd79
Total devices 1 FS bytes used 13.83GiB
devid 1 size 117.12GiB used 17.02GiB path /dev/mapper/trim_421bba93_d67b_48d2_8511_f1944cb6b659-0
Label: none uuid: fb1d1948-a886-4289-9e3e-7b3dd3ee9a02
Total devices 1 FS bytes used 76.62GiB
devid 1 size 931.38GiB used 82.02GiB path /dev/mapper/trim_5f565982_8b53_4aeb_a650_f303878e2114-0
root@jadenHome:/# ls -la /dev/md*
brw-rw---- 1 root disk 9, 125 Jan 12 09:22 /dev/md125
brw-rw---- 1 root disk 9, 126 Jan 12 09:20 /dev/md126
brw-rw---- 1 root disk 9, 127 Jan 12 09:20 /dev/md127
/dev/md:
total 0
drwxr-xr-x 2 root root 80 Jan 12 09:22 .
drwxr-xr-x 22 root root 3920 Jan 12 09:23 ..
lrwxrwxrwx 1 root root 8 Jan 12 09:20 jadenFnOs:1 -> ../md127
lrwxrwxrwx 1 root root 8 Jan 12 09:22 jadenFnOs:2 -> ../md125
飞牛系统错误日志如下：root@jadenHome:/# dmesg --level=err
[ 1.039548] rockchip-otp fe38c000.otp: error -ENOENT: Failed to get clk 'otp'
[ 1.040203] rockchip-otp fe38c000.otp: error -ENOENT: failed to get clocks
[ 1.040849] rockchip-otp fe38c000.otp: probe with driver rockchip-otp failed with error -2
[ 1.311925] F2FS-fs (mmcblk0p2): Can't find valid F2FS filesystem in 1th superblock
[ 1.313682] F2FS-fs (mmcblk0p2): Can't find valid F2FS filesystem in 2th superblock
[ 2.215560] systemd-gpt-auto-generator[127]: File system behind root file system is reported by btrfs to be backed by pseudo-device /dev/root, which is not a valid userspace accessible device node. Cannot determine correct backing block device.
[ 2.244172] (sd-execut[116]: /usr/lib/systemd/system-generators/systemd-gpt-auto-generator failed with exit status 1.
[ 4.101131] btrfs: Unknown parameter 'errors'
[ 4.153416] rga_iommu: rga_iommu_bind, binding map scheduler failed!
[ 4.154340] rga: rga iommu bind failed!
[ 4.240689] systemd[1]: Failed to start systemd-remount-fs.service - Remount Root and Kernel File Systems.
[ 7.414936] rk_gmac-dwmac fe010000.ethernet: Can not read property: tx_delay.
[ 7.415591] rk_gmac-dwmac fe010000.ethernet: set tx_delay to 0x30
[ 7.416136] rk_gmac-dwmac fe010000.ethernet: Can not read property: rx_delay.
[ 7.418135] rk_gmac-dwmac fe010000.ethernet: set rx_delay to 0x10
[ 42.839046] md: super_written gets error=-5
[ 48.595915] F2FS-fs (sdd): Can't find valid F2FS filesystem in 1th superblock
[ 48.649372] F2FS-fs (sdd): Can't find valid F2FS filesystem in 2th superblock
[ 49.127013] F2FS-fs (mmcblk0boot0): Can't find valid F2FS filesystem in 1th superblock
[ 49.139990] F2FS-fs (mmcblk0boot0): Can't find valid F2FS filesystem in 2th superblock
[ 49.822208] /dev/sdc: Can't open blockdev
[ 49.974439] F2FS-fs (mmcblk0boot1): Can't find valid F2FS filesystem in 1th superblock
[ 49.977824] F2FS-fs (mmcblk0boot1): Can't find valid F2FS filesystem in 2th superblock
[ 50.242487] /dev/sda: Can't open blockdev
[ 125.142256] Buffer I/O error on dev md126, logical block 0, async page read
[ 125.142920] Buffer I/O error on dev md126, logical block 0, async page read
[ 125.148014] Buffer I/O error on dev dm-1, logical block 0, async page read
[ 125.148675] Buffer I/O error on dev dm-1, logical block 0, async page read
[ 214.453697] Buffer I/O error on dev md126, logical block 0, async page read
[ 214.454348] Buffer I/O error on dev md126, logical block 0, async page read
[ 214.457359] Buffer I/O error on dev dm-1, logical block 0, async page read
[ 214.457999] Buffer I/O error on dev dm-1, logical block 0, async page read
[ 245.456817] Buffer I/O error on dev dm-1, logical block 976720880, async page read
[ 246.087623] Buffer I/O error on dev md126, logical block 976721136, async page read
[ 265.401124] Buffer I/O error on dev dm-1, logical block 976720880, async page read
[ 265.428852] Buffer I/O error on dev md126, logical block 976721136, async page read
[ 635.275405] Buffer I/O error on dev md126, logical block 976721136, async page read
[ 638.800125] Buffer I/O error on dev md126, logical block 976721136, async page read
[ 647.044803] Buffer I/O error on dev md126, logical block 16, async page read
[ 647.046555] Buffer I/O error on dev md126, logical block 16, async page read
[ 678.673407] Buffer I/O error on dev md126, logical block 976721136, async page read
[ 686.411731] Buffer I/O error on dev md126, logical block 0, async page read
[ 686.412386] Buffer I/O error on dev md126, logical block 0, async page read
[ 721.990650] Buffer I/O error on dev md126, logical block 0, async page read
[ 1230.539109] F2FS-fs (sdd): Can't find valid F2FS filesystem in 1th superblock
[ 1230.540712] F2FS-fs (sdd): Can't find valid F2FS filesystem in 2th superblock
[ 1297.923527] Buffer I/O error on dev md126, logical block 976721136, async page read
[ 1305.887076] Buffer I/O error on dev md126, logical block 976721136, async page read
[ 1311.974126] Buffer I/O error on dev md126, logical block 0, async page read
[ 1687.990339] I/O error, dev sdd, sector 2112 op 0x0:(READ) flags 0x80700 phys_seg 1 prio class 2
[ 1761.717487] I/O error, dev sdd, sector 7814036992 op 0x0:(READ) flags 0x80700 phys_seg 1 prio class 0
[ 1762.145333] Buffer I/O error on dev dm-1, logical block 0, async page read
[ 1762.146164] Buffer I/O error on dev dm-1, logical block 0, async page read
[ 1762.146857] Buffer I/O error on dev dm-1, logical block 0, async page read
[ 1762.147526] Buffer I/O error on dev dm-1, logical block 0, async page read
[ 1762.148176] Buffer I/O error on dev dm-1, logical block 0, async page read
[ 1762.148833] Buffer I/O error on dev dm-1, logical block 0, async page read
[ 1762.149481] Buffer I/O error on dev dm-1, logical block 0, async page read
[ 1762.150600] Buffer I/O error on dev dm-1, logical block 0, async page read
[ 1762.151338] Buffer I/O error on dev dm-1, logical block 0, async page read
[ 1762.152084] Buffer I/O error on dev dm-1, logical block 1, async page read
